| Spesifikasjoner |

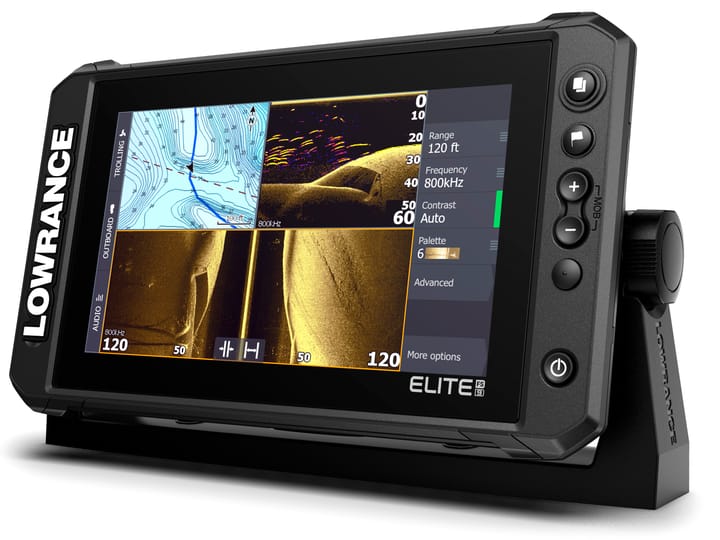

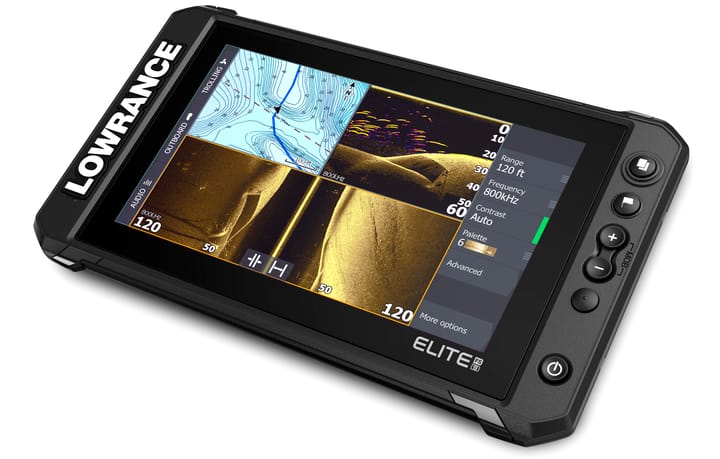

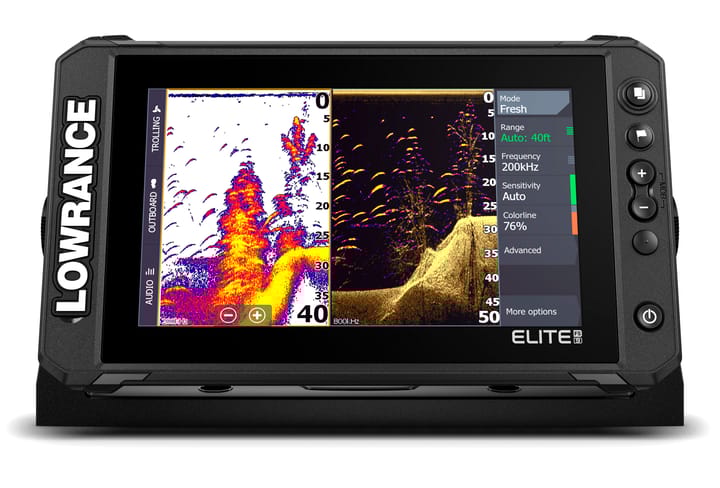

Lowrance
Elite FS |
| Lysstyrke på skjermen |
>1200
nits |
| Lagring på SD-kort |
1
micro SD card up to 32GB |

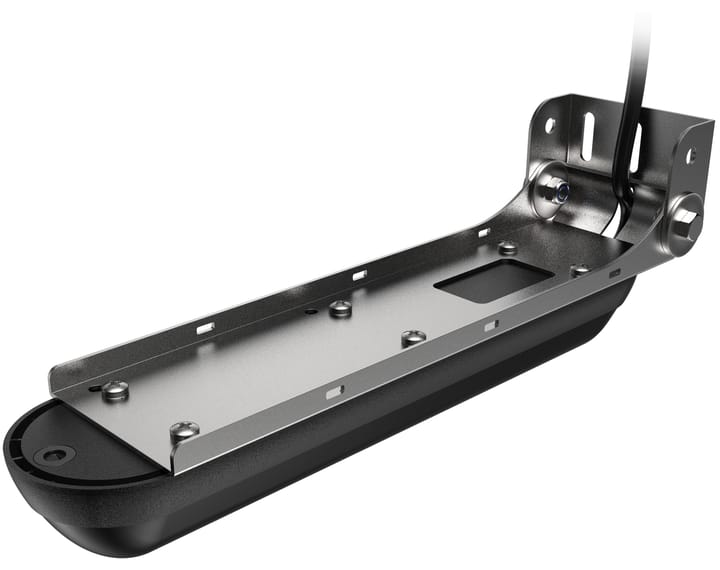

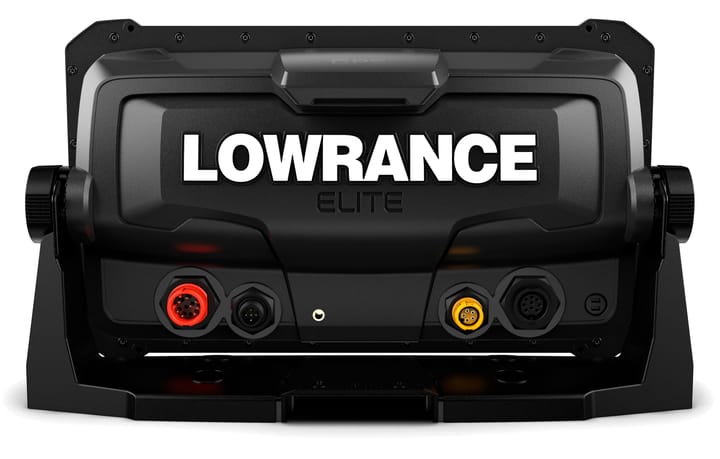

| Kontakt giver | 9-pin Xsonic plugg |
| Ethernet-porter |
1
x 100Mbit |
| Garantiperiode |
1
Year + 4 additional years ofupgrade optionsTotaling 5 years |
| Vekt |
1.90
lbs (0.90 kg) |
| Oppdateringsfrekvens |
10
Hz |
| GPS |
10
Hz Internal high-sensitivity WAAS + EGNOS + MSAS |
| Støtvibrasjon |
100,000
cycles of 20 G |
| Sikkert for kompass |
12"
(300mm) |
| Forsyningsspenning |
12v
DC (10.8-17VDC) |
| GPS-mottakerkanaler |
16 |
| NMEA 2000-tilkobling |
1x
Micro-C |
| Strømforbruk maks. |
2.0A
@ 13VDC with backlight on full |
| Strømforbruk normalt |
2.0A
@ 13VDC with backlight on full |
| Strømforbruk min. |
2.0A
@ 13VDC with backlight on full |
| Posisjonsnøyaktighet |
20m
RMS |
| Veipunkt, Ruter, Spor |
3000
Waypoints100 Routes100 Trails with up to 10,000 points per trail |
| Tid til første posisjon |
30s |
| Anbefalt nominell verdi for sikring |
3A |
| Temperaturområde for lagring |
4°F
to 140°F (-20°C to 60°C ) |
| Radarkompatibilitet |
4G
(Broadband)3G (Broadband)Halo20 (Pulse Compression Dome Radar)Halo20+ (Pulse
Compression Dome Radar)Halo24 (Pulse Compression Dome Radar) |
| Driftstemperatur |
5°F
to 131°F (-15°C to 55°C ) |
| Visningsvinkler |
50°
top60°bottom70° left/right |
| Fuktighet |
60°C,
95% relative humidity (RH) for 18 hours |
| Skjermoppløsning |
800x480 |
| AIS |
AIS
Chart overlay. Target vessel details. |
| Kart som støttes |
C-MAP
(MAX N, MAX N+)C-MAP GenesisC-MAP Precision Contour HD (AMER ONLY)Navionics
(Gold, NAV+ Platinum+)Insight (Pro and HD)Lowrance Regional Mapping Partners |
| Kartografi inkludert |
C-MAP
ROW Basemap (ROW models)Navionics basemap (AMER, AUS/NZ and ROW models) |
| Korrigering |
DGPSWAASMSASEGNOSGLONASS |

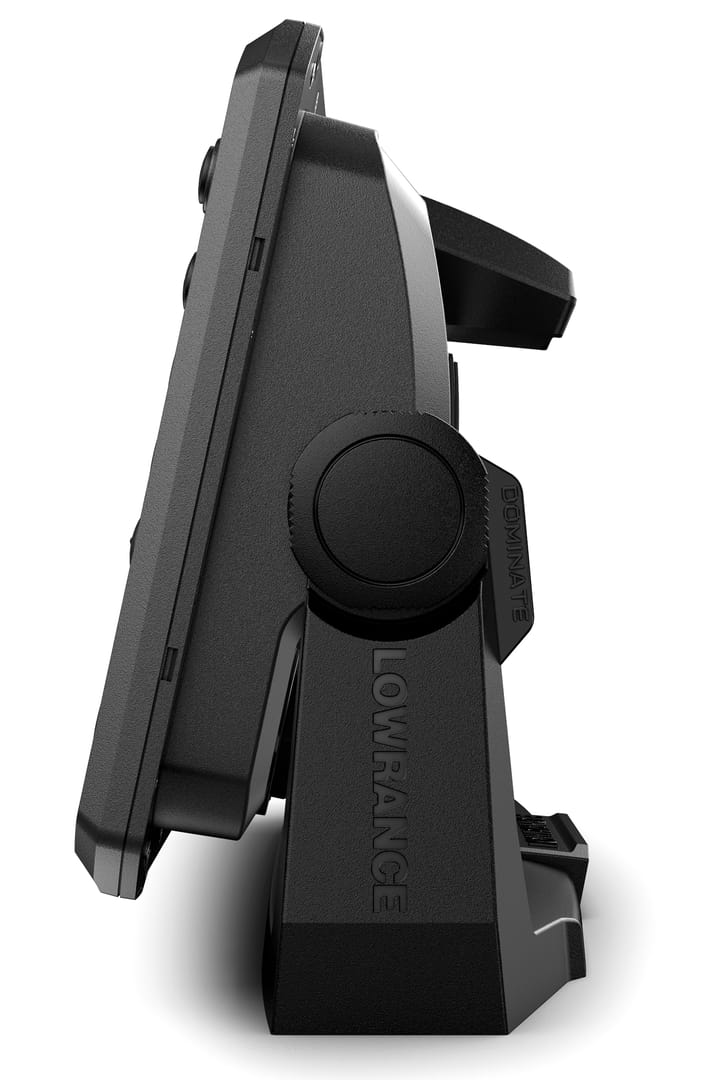

| Monteringstype |
Gimbal
Bracket or Dash Flush Mount |
| Blåtann |
Integrated
Bluetooth 4.0 with support for Bluetooth Classic |
| Ekkoloddkompatibilitet |
Integrated:
CHIRPBroadbandActive Imaging DownScanActive Imaging SideScanCompatible
with:SonarHubStructureScanStructurreScan 3DLiveSightActive Target |
| Elementtilkobling Wi-Fi |
Internal
802.11b/g/n |
| Klassifisering for vanntetthet |
IPX7
with card door closed |
| Grensesnitt |
Multi-Touch
TouchscreenZoom +/-MOB = (+/- combined)PagesWaypointLight/Power |
| Intern lagring |
None |
| PC-tilkobling |
None |
| Video |
None |
| Digital bryterstyring |
None |
| Autopilot |
Outboard
PilotGhost Trolling MotorMotorGuide Xi5/Xi3 Trolling Motor **requires
Motorguide PinPoint Gateway |
| Farge på bakgrunnsbelysning |
Pure
White LED |
| N2K PGN-er |
Receive
only65240 ISO Commanded Address, 127245 Rudder, 127251 Rate of Turn, 127257
Attitude, 127488 Engine Parameters, Rapid Update, 127489 Engine Parameters,
Dynamic, 127493 Transmission Parameters, Dynamic, 127505 Fluid Level, 127508
Battery Status, 129033 Time and Date, 129038 AIS Class A Position Report,
129039 AIS Class B Position Report, 129040 AIS Class B Extended Position
Report, 129794 AIS Class A Static and Voyage Related Data, 129801 AIS Address
Safety Related Message, 129802 AIS Safety Related Broadcast Message, 129808
DSC Call Information, 130313 Humidity, 130314 Actual Pressure, 130576 Small
Craft Status, 65285 Temperature with Instance, 65325 Reprogramming Status,
65480 Parameter Reply, 130817 Product Information, 130820 Reprogramming Status,
130832 Fuel Used – High Resolution, 130834 Engine and Tank Configuration,
130838 Fluid Level Warning, 130842 AIS and VHF Message Transport, 130843
Sonar Status – Frequency and DSP VoltageTransmit and Receive:59392 ISO
Acknowledgement, 59904 ISO Request, 60160 ISO Transport Protocol, Data
Transfer, 60416 ISO Transport Protocol, Connection Management, 60928 ISO
Address Claim, 126208 NMEA Group Function, 126464 Receive/Transmit PGN’s
group function, 126992 System Time, 126996 Product Information, 127237
Heading/Track Control, 127250 Vessel Heading, 127258 Magnetic Variation,
128259 Speed, 128267 Water Depth, 128275 Distance Log, 129025 Position, Rapid
Update, 120296 COG and SOG, Rapid Update, 129029 GNSS Position Data, 129283
Cross Track Error, 129284 Navigation Data, 129539 GNSS DOPs, 129540 GNSS Sats
In View, 130074 Route and WP Service – WP List - WP Name and Position, 130310
Environmental Parameters, 130311 Environmental Parameters, 130312
Temperature, 130577 Direction Data, 61184 Parameter Command, 65292 Clear
Fluid Level Warnings, 65293 LGC-2000 Configuration, 65323 Data User Group
Request, 130831 EP-20 Suzuki Engine and EP-50 Storage Device Configuration,
130835 Set Engine and Tank Configuration, 130839 EP-45 Pressure
Configuration, 130840 Data User Group Configuration, 130845 Parameter Handle,
130850 Event Command, 130851 Event ReplyTransmit only65287 Temperature Sensor
Configuration, 65289 Trim Tab Configuration, 65290 Paddle Wheel Speed
Configuration, 130818 Reprogramming Data, 130819 Request Reprogram, 130828
Set Serial Number, 130836 Fluid Level Configuration, 130837 Fuel Flow Turbine
Configuration |
| Vær |
SiriusXM
via WM-4 (USA only) |
| Multimedia |
SonicHubSonicHub2FusionLink
productsany NMEA 2000 compliant Marine Aduio products |
| Språk |
Standard
Language Pack: Afrikaans/Afrikaans, Danish/Dansk, German/Deutsch, English
(US), English (UK), Spanish/Español, Finnish/Suomi, French/Français,
Greek/????????, Icelandic/íslenska, Italian/Italiano, Dutch/Nederlands,
Norwegian/Norsk, Portugese (Brazil)/Português (BR), Portugese
(Portugal)/Português (PT), Swedish/SvenskaAsian Language Pack: English (US),
English (UK), Japanese/???, Korean/???, Thai/???????, Chinese - (simplified)
China/????, Chinese - (traditional) Taiwan/????Eastern European Language
Pack:Bulgarian/?????????, German/Deutsch, Estonian/Eesti, English (US),
English (UK), Spanish/Español, French/Français, Hebrew/ ???? , Croatian/
Hrvatski, Hungarian/ Magyar, Italian/Italiano, Lithuanian/Lietuvos, Latvian/
Latvijas, Polish/Polski, Slovak/ Slovensky, Turkish/TürkçeRussia/Ukraine
Language pack: German/Deutsch, English (US), English (UK), Spanish/Español,
Italian/Italiano, Russian/???????, Ukraine/ ??????????Middle Eastern Language
Pack: Arabic (UAE)/ ??????? , German/Deutsch, English (US), English (UK),
Farsi/ ????? , French/Français, Italian/Italiano |
